Torque Hinges - Types and Applications Guide

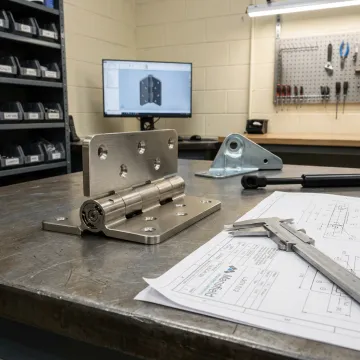

A torque hinge is a hinge designed to create controlled resistance during rotation, allowing a lid, panel, screen, or door to hold position instead of swinging freely. In OEM applications, torque hinges are often engineered to a specific load, motion arc, and tactile feel. They may also be called friction hinges, position-control hinges, or hold-anywhere hinges.

Common torque hinge types include friction hinges, detent hinges, constant-torque hinges, position-control hinges, and counterbalanced hinge assemblies. Friction hinges hold anywhere along the arc, detent hinges index at set angles, and counterbalanced hinges offset weight. The right type depends on door weight, center of gravity, opening angle, duty cycle, environment, and desired user experience.

Torque hinges are used wherever controlled motion improves safety, usability, or product feel. Mansfield Engineered Components supports applications in residential and commercial appliances, medical casegoods, industrial enclosures, automotive aftermarket accessories, outdoor equipment, RV storage, marine equipment, and specialty machinery. Typical uses include lids, access covers, drop-down doors, cabinet doors, tonneau covers, and panels that must stay open.

Start with the panel weight, center of gravity, desired opening angle, available packaging space, expected cycle life, environment, and target unit cost. Mansfield evaluates these inputs to develop the proper torque profile, material choice, geometry, and manufacturing method. For high-volume OEM programs, custom engineering can outperform catalog hardware in fit, function, durability, and cost.

Yes. Mansfield engineers custom torque curves for hinges, counterbalances, and closure mechanisms based on the product’s motion requirements. The team can tune resistance across the motion arc, support hold-at-angle behavior, reduce opening effort, or create controlled closing. Designs are prototyped and validated in-house before tooling and production release.

Validation can include force and torque measurement across the motion arc, cycle-life testing, hold-at-angle testing, environmental exposure, corrosion considerations, and functional checks against OEM specifications. Mansfield’s in-house prototyping and engineering validation help confirm the hinge delivers the required feel, durability, and performance before committing to production tooling.

Catalog hinges can work well for simple or low-volume products designed around standard hardware. Custom torque hinges become attractive when the application has unique geometry, specific torque requirements, premium feel targets, material constraints, or production volumes that justify tooling. Mansfield supports programs from 5,000 to 5,000,000+ components, with value engineering focused on target unit economics.

Mansfield supports both lower-volume specialty programs and high-volume OEM production. Program volumes range from 5,000 to 5,000,000+ components, with more than 250,000 motion control components shipped every week. Capabilities include progressive die stamping, single-stage stamping, fabrication, assembly, inspection, packaging, strategic inventory, and release-based delivery.
