Southco CB Counterbalance Hinge Features and Specs

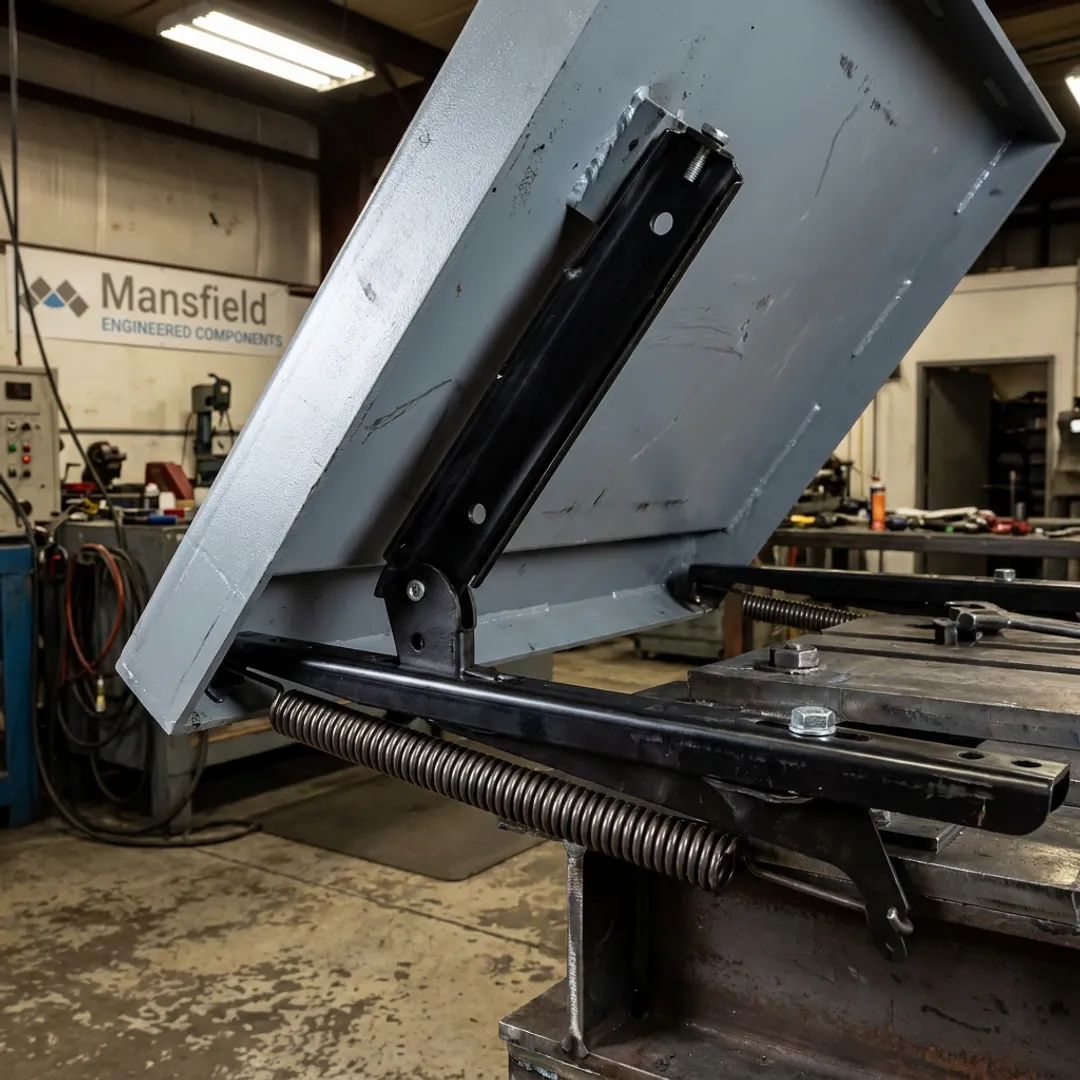

A Southco CB counterbalance hinge is typically considered for lids, covers, panels, or doors that need lift assistance, controlled motion, and hold-open behavior. The key design purpose is offsetting panel weight so users can open and position the assembly with less effort. OEM teams should compare catalog specifications against actual lid weight, center of gravity, opening angle, duty cycle, and packaging constraints.

The most important specifications include supported lid weight, torque profile, opening and closing angle, mounting geometry, cycle-life expectations, material and finish, operating environment, and available installation space. For OEM programs, unit cost at production volume, tooling requirements, and consistency across repeated cycles are also critical. Mansfield validates these factors through prototype testing before production release.

A custom counterbalance is usually the better choice when a catalog hinge cannot match the required torque curve, lid geometry, tactile feel, space envelope, material requirements, or target production economics. Mansfield notes that custom engineering often becomes more cost-effective at scale, particularly where annual volumes justify tooling and where the product experience depends on precise controlled motion.

Mansfield Engineered Components does not simply resell catalog hardware; it designs and manufactures application-specific hinges, counterbalances, and motion-control components. If a Southco CB hinge is close but not ideal, Mansfield can help evaluate the functional requirements, prototype a custom alternative, validate performance, and scale production for OEM applications in appliances, medical casegoods, industrial products, and transportation.

Performance validation can include force and torque measurement across the motion arc, hold-at-angle testing, cycle-life testing, environmental exposure, corrosion considerations, and verification of opening and closing feel. Mansfield builds and tests prototypes in-house so design changes can be evaluated before tooling is finalized, reducing the risk of production components that fail to meet user or OEM expectations.

Mansfield supports a wide production range, from 5,000-unit specialty programs to 5,000,000+ components per program. The company ships over 250,000 motion-control components every week and uses progressive die stamping, single-stage tooling, flexible assembly, strategic inventory, and release-based delivery to support both high-volume and lower-volume OEM component programs.

Custom counterbalance hinges are used in residential and commercial appliances, medical casegoods, industrial access covers, automotive aftermarket products, RV and specialty vehicle components, and equipment enclosures. Common applications include oven doors, washing machine lids, heavy access covers, medical cabinet doors, tonneau covers, hoods, deck lids, and panels that must open smoothly and remain positioned safely.

Prepare the application details, including lid or panel weight, dimensions, center of gravity, desired opening angle, mounting constraints, cycle-life requirements, materials, environmental conditions, target production volume, and cost objectives. Mansfield quotes programs based on design complexity, materials, tolerances, production volume, and tooling requirements. OEM teams can contact sales@mansfieldec.com or call +1.419.524.1300.
