Hinge Boring Machines for Cabinet Making

Hinge devices are mechanical components that connect two parts while allowing controlled movement between them. In cabinet making, they allow a door, lid, or panel to pivot, open, close, hold position, or move with controlled resistance. Mansfield engineers hinge devices such as concealed hinges, pivot hinges, friction hinges, detent hinges, counterbalances, and soft-close mechanisms for OEM applications.

A hinge is used to create a controlled pivot point between a fixed structure and a moving part. In cabinets, hinges attach the door to the case and determine alignment, swing angle, opening feel, closing behavior, and long-term durability. Custom hinge engineering becomes important when standard hardware cannot meet geometry, torque, material, finish, or production cost requirements.

A mechanical hinge is a hardware mechanism that permits rotation around an axis while supporting load and maintaining alignment. Depending on the design, it may simply pivot or may add torque control, detents, counterbalance force, damping, or concealed motion. Mechanical hinges are used in cabinets, appliances, medical casegoods, vehicles, industrial enclosures, and many other OEM products.

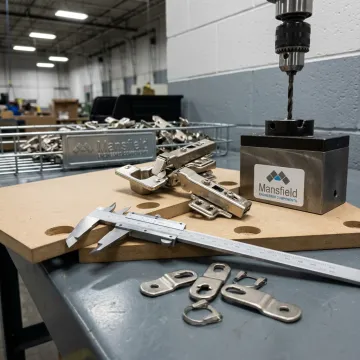

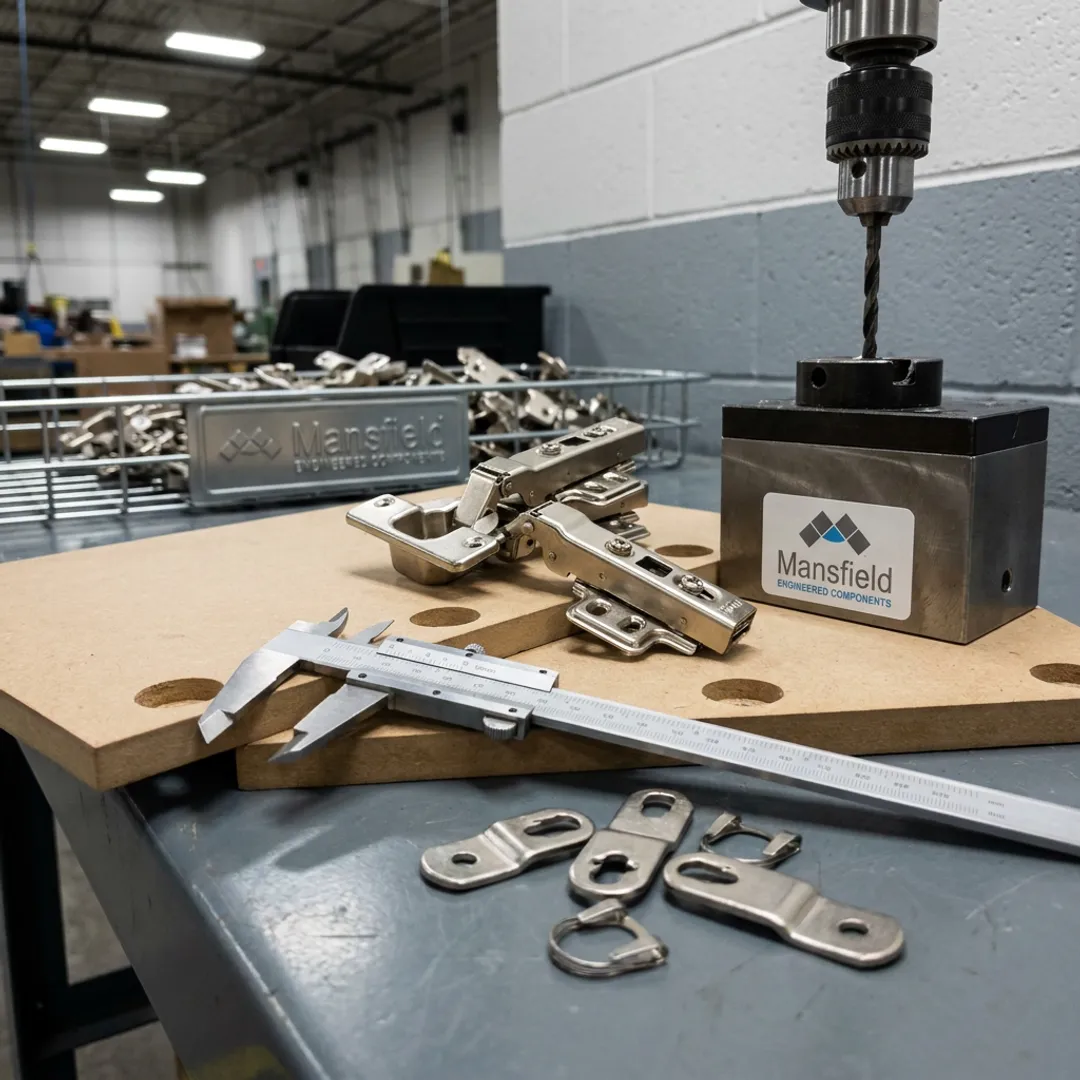

Mansfield Engineered Components focuses on custom hinges, counterbalances, closure mechanisms, metal stamping, prototyping, and OEM component manufacturing rather than standard woodworking machinery catalogs. For cabinet-making programs, the team can engineer hinge hardware that works with a manufacturer’s boring and assembly process, including concealed hinge applications and repeatable production requirements.

Custom hinges can be designed around the cabinet door’s weight, thickness, boring pattern, opening angle, material, finish, and installation sequence. This helps OEMs improve fit, feel, form, and function while reducing assembly issues. Mansfield also prototypes and validates the design before production tooling, helping confirm that the hinge performs consistently in real-world use.

Custom hinges are often the better choice when the cabinet application has unusual geometry, premium tactile requirements, high annual volume, strict material needs, or target unit costs that catalog hardware cannot meet at scale. Mansfield’s approach is especially relevant when a hinge must be engineered for a specific torque profile, concealed appearance, environmental exposure, or assembly process.

Mansfield supports production programs ranging from 5,000 components to 5,000,000+ components per program. The company ships over 250,000 motion control components every week and uses progressive die stamping, single-stage tooling, flexible assembly, strategic inventory, and release-based delivery to serve both lower-volume specialty programs and high-volume OEM manufacturing.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling requirements, validation needs, and expected production volume. Engineering, prototyping, tooling, and production considerations are reviewed together so the final design can meet performance requirements and target unit economics. OEMs can request an RFQ or design consultation to begin scoping a program.
