Custom Hinged Rack Panels - Vented & Blank Options

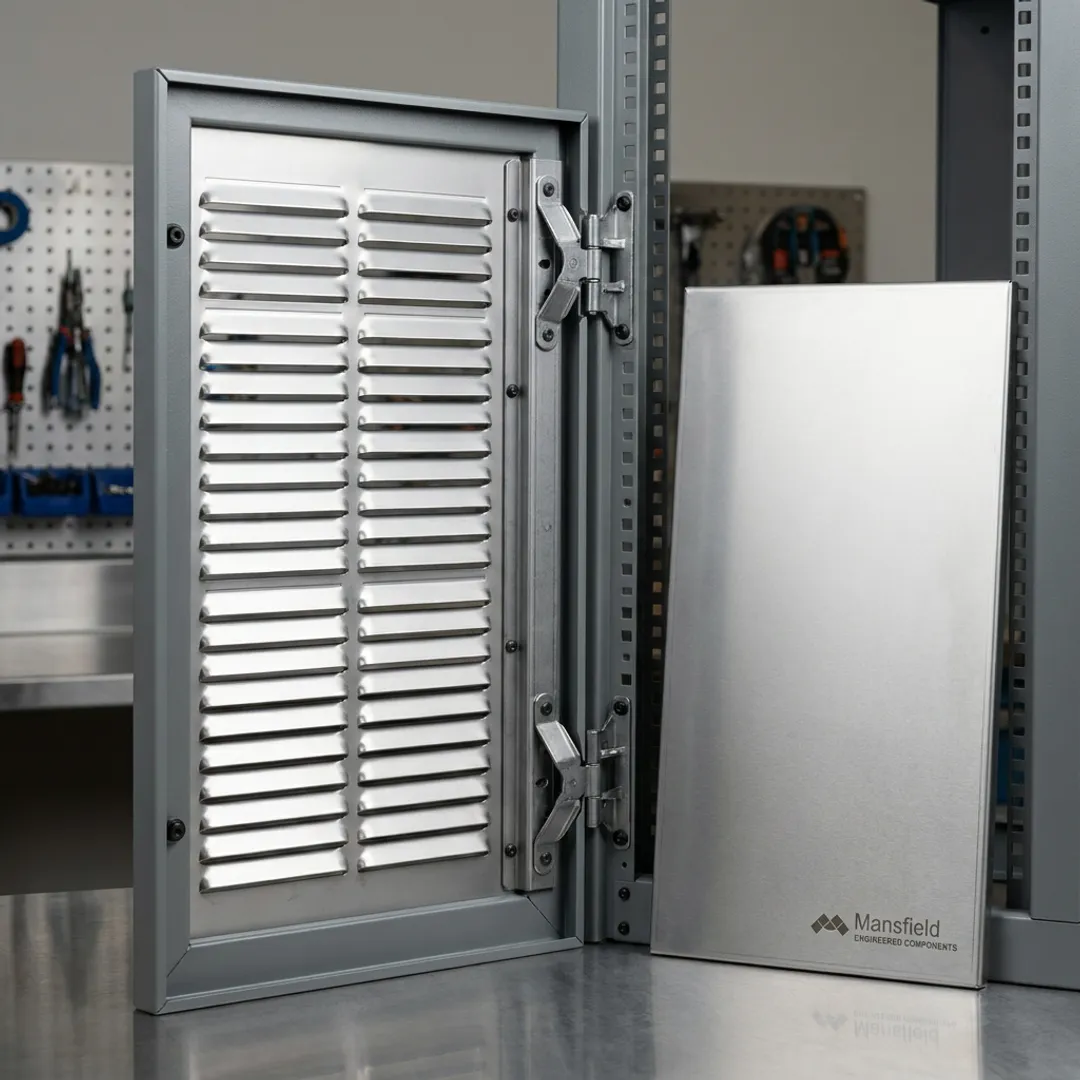

A hinged rack generally refers to a rack, enclosure, or panel assembly that includes a hinged access point. Instead of fully removing a cover or panel, the user can swing it open for inspection, service, wiring access, ventilation maintenance, or component replacement. Hinged rack panels can be vented for airflow or blank for clean enclosure coverage.

Vented hinged rack panels include slots, perforations, or other openings that support airflow and heat dissipation. Blank hinged panels are solid and typically used when airflow is not required or when the enclosure needs cleaner appearance, shielding, or controlled access. The right choice depends on equipment cooling needs, environment, aesthetics, and access frequency.

Yes. Mansfield specializes in custom-engineered components rather than a cookie-cutter catalog approach. The team can support application-specific geometry, hinge motion, material selection, finish requirements, ventilation patterns, mounting details, and production cost targets. This is especially useful when standard hardware does not match the enclosure, performance, or volume requirements.

Material selection depends on strength, corrosion resistance, appearance, weight, and operating environment. Mansfield’s broader manufacturing capabilities include cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys for demanding environments. For rack panels, the material and finish can be engineered around durability, cleanability, ventilation, and OEM assembly requirements.

Yes. Mansfield offers in-house prototyping and engineering validation to help OEM teams confirm the design before committing to production tooling. Prototypes can be evaluated for fit, hinge action, alignment, durability, ventilation configuration, and manufacturability. This helps reduce launch risk and gives engineering teams a practical path for design iteration.

Mansfield supports production programs ranging from approximately 5,000 components to 5,000,000+ components per program. The company ships over 250,000 motion control components every week and can support both lower-volume specialty applications and high-volume OEM production through stamping, fabrication, assembly, inspection, and release-based delivery planning.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling needs, finishes, assembly requirements, and production volume. Mansfield applies value engineering to help meet target unit economics while maintaining required performance. Tooling, prototyping, engineering support, and production requirements are typically considered as part of the RFQ process.

OEM design engineers, sourcing managers, manufacturing engineers, and product development teams should request a quote when they need a custom vented or blank hinged panel for an enclosure, rack, access cover, or equipment assembly. Mansfield is well suited for programs requiring custom engineering, domestic manufacturing support, repeatable production, and single-source accountability.
