Hinge Design Validation and Testing Guide

Hinges are typically manufactured through metal stamping, forming, fabrication, spring production when required, and final assembly with rivets, fasteners, or integrated sub-components. For custom OEM hinges, the process starts with engineering requirements, prototype validation, tooling design, and inspection planning. Mansfield supports progressive die stamping, single-stage stamping, sheet metal fabrication, assembly, and final quality checks.

Before production tooling, OEM teams should validate fit, motion arc, operating force, torque profile, cycle life, hold-at-angle behavior, closing feel, material selection, finish durability, and assembly compatibility. These checks confirm the hinge meets product requirements before tooling costs are committed. Early validation also helps prevent late-stage redesigns that can delay launch schedules.

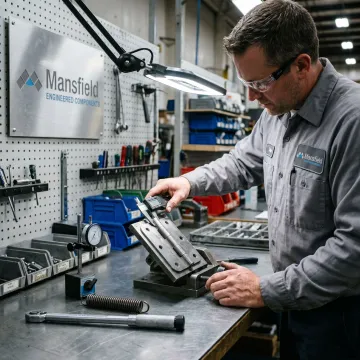

Cycle-life testing repeatedly opens and closes the hinge or motion control component under defined conditions. The test may simulate the expected product life, customer-use patterns, load conditions, and operating angles. Engineers monitor wear, loosening, deformation, loss of torque, noise, or failure. Results help determine whether the design can survive real-world use in the intended application.

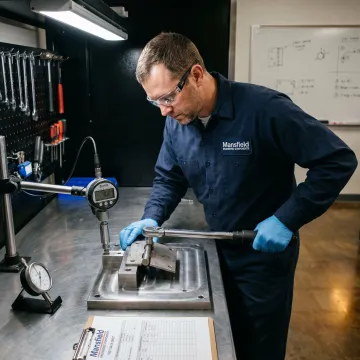

A hinge torque profile is measured by recording force or torque values at multiple points across the motion arc. This shows how the hinge behaves from closed to fully open and whether the force curve matches the application. For counterbalances and position-control hinges, torque validation is critical because the component must support weight safely and predictably.

Common environmental tests include temperature exposure, humidity testing, corrosion exposure, and application-specific material or finish evaluations. The right test depends on where the hinge will operate, such as appliances, medical casegoods, outdoor equipment, marine products, or industrial enclosures. Environmental validation helps confirm that materials and coatings remain reliable under expected conditions.

Custom validation is valuable when a product has a specific torque curve, unusual geometry, restricted space, high-cycle durability requirements, premium tactile expectations, or material constraints that standard catalog hardware cannot meet. It is also useful when annual volumes justify custom tooling and the OEM needs a component optimized for unit cost, manufacturability, and product differentiation.

Yes. Retesting is a key advantage of in-house prototype validation. If a prototype does not meet torque, cycle-life, motion, or fit requirements, engineers can modify the design and run targeted tests again before tooling release. This helps OEM teams make evidence-based decisions and reduces the risk of discovering problems after production tooling is already built.

Useful inputs include drawings or CAD data, target motion arc, panel weight, mounting geometry, operating environment, material preferences, cycle-life expectations, torque or force requirements, annual volume, target unit cost, and launch timing. Mansfield quotes programs based on design complexity, materials, tolerances, tooling requirements, production volume, prototyping needs, and engineering support.
