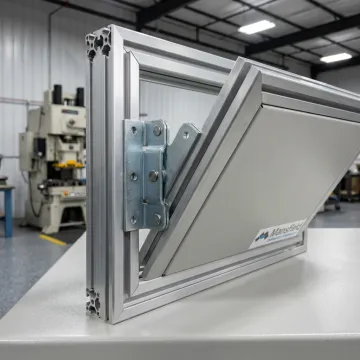

Custom Hinges for T-Slot Framing Systems

Yes. Mansfield Engineered Components designs custom hinges for application-specific requirements, including T-slot framing systems used in industrial enclosures, guarding, access panels, and equipment frames. The team evaluates frame geometry, panel weight, mounting constraints, desired opening angle, material requirements, and production volume to engineer a hinge that fits the assembly and performs reliably.

Mansfield does not operate as a standard catalog hinge supplier. The company specializes in custom-engineered hinges, counterbalances, and motion control components for OEM programs. This approach is best suited when an off-the-shelf T-slot hinge cannot meet the required load rating, motion feel, geometry, durability, finish, or unit cost at production scale.

Depending on the application, T-slot framing systems may use pivot hinges, concealed hinges, continuous hinges, detent hinges, friction hinges, torque-controlled hinges, or counterbalanced hinges. Mansfield can engineer the appropriate design around the panel’s weight, required motion arc, mounting envelope, environmental exposure, and whether the door or cover must stay open at specific positions.

Yes. Mansfield builds and validates prototypes in-house before production tooling is released. Testing may include force and torque measurement, cycle-life testing, motion arc evaluation, hold-at-angle testing, environmental considerations, and fit checks against customer requirements. This helps OEM engineering teams refine the design and reduce risk before full production launch.

Mansfield supports OEM programs ranging from 5,000-unit specialty runs to 5,000,000+ component production programs. The company combines progressive die stamping, single-stage tooling, flexible assembly, strategic inventory, and release-based shipping to serve both lower-volume specialty applications and high-volume manufacturing programs with consistent quality and delivery performance.

Useful RFQ inputs include drawings or CAD files, T-slot frame profile details, panel dimensions and weight, opening angle, load and cycle expectations, material or finish requirements, target annual volume, desired unit cost, packaging needs, and timing. If a current hinge exists, samples or performance issues can also help Mansfield evaluate improvement opportunities.

Yes. Mansfield works with materials and finishes suited to demanding environments, including cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys where appropriate. Corrosion-resistant or weatherized designs may be relevant for outdoor equipment, industrial enclosures, marine applications, medical casegoods, food-contact equipment, or washdown environments.

Yes. Mansfield provides production transition support when an OEM needs to resource a hinge or motion control component from a discontinued, unreliable, acquired, offshore, or end-of-life supplier. Services can include tooling transfer, assembly line relocation, first-article inspection, production validation, and value engineering while maintaining form, fit, and function requirements.
