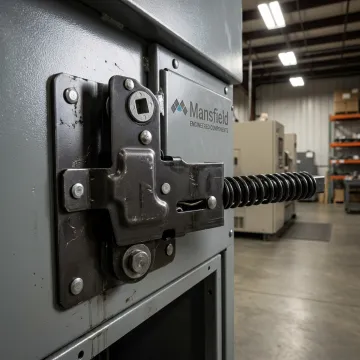

Custom Heavy-Duty Industrial Hinges for Various Applications

Common industrial hinge types include pivot hinges, continuous or piano hinges, concealed hinges, four-bar hinges, detent hinges, friction hinges, and position-control hinges. Mansfield also engineers counterbalance hinges, lift-assist mechanisms, soft-close assemblies, and custom torque-controlled designs. The best option depends on load, motion path, available space, environmental exposure, cycle-life requirements, and production volume.

The strongest hinge design depends on how the load is applied. Continuous hinges distribute force along a long edge, which can be ideal for heavy panels. Four-bar and reinforced pivot designs can manage complex movement or high loads. For OEM applications, Mansfield evaluates material thickness, geometry, pin design, mounting method, torque profile, and cycle requirements before recommending a design.

Yes. Mansfield Engineered Components specializes in custom hinge engineering for applications where off-the-shelf hardware cannot meet the required geometry, motion feel, torque curve, material specification, or unit cost. The engineering team collaborates with OEM product designers, develops prototypes in-house, validates function through testing, and then transitions the design into tooling and production.

Heavy-duty industrial hinges are used on access covers, machinery panels, industrial enclosures, equipment lids, specialty vehicles, outdoor equipment, medical casegoods, commercial appliances, and storage or utility cabinets. Mansfield focuses on applications where controlled movement matters, especially horizontal-axis pivoting, lift-assist motion, counterbalanced lids, soft-close doors, and panels that must hold open at specific angles.

Mansfield supports production volumes from approximately 5,000 components to more than 5,000,000 components per program. High-volume programs can use progressive die stamping and dedicated production planning, while lower-volume specialty programs benefit from flexible tooling and assembly. The company ships more than 250,000 motion control components every week to OEM customers.

Custom hinge pricing is quoted per program based on design complexity, materials, tolerances, testing requirements, tooling, production volume, assembly needs, and delivery expectations. Mansfield applies value engineering to target the required performance and unit economics. Tooling, prototyping, engineering validation, and production support can be included as part of the RFQ and development process.

Yes. Mansfield builds and tests prototypes in-house before production tooling is released. Validation can include torque and force measurement across the motion arc, cycle-life testing, environmental testing for temperature, humidity, or corrosion exposure, and hold-at-angle testing for counterbalance components. This helps OEM teams confirm performance, fit, feel, and durability earlier in development.

Yes. Mansfield provides production transition, tooling transfer, and resourcing services for OEMs dealing with discontinued suppliers, closed factory divisions, end-of-life programs, or unreliable offshore sources. The transition can include tooling qualification, first-article inspection, production validation, and value engineering while maintaining form, fit, and function compatibility for the existing component.
