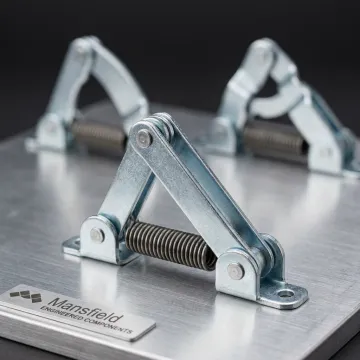

Custom Aluminum Extrusion Hinges for T-Slot Systems

Yes. Aluminum can be used for hinges when the design accounts for load, fatigue, pin selection, fastener engagement, wear surfaces, and the operating environment. It is especially useful when weight reduction, corrosion resistance, or compatibility with aluminum extrusion systems matters. For demanding OEM applications, the hinge should be engineered and tested rather than selected only by material.

Mansfield Engineered Components focuses on custom-engineered hinge and motion control programs, not a standard catalog model. That makes the company a fit when a T-slot assembly needs specific geometry, torque behavior, motion feel, material selection, load capacity, or target unit cost that off-the-shelf hardware cannot reliably deliver at production scale.

Custom hinges can support machine guards, access panels, enclosure doors, equipment frames, inspection covers, workstation assemblies, and other aluminum extrusion structures. The right design depends on the extrusion profile, panel size, operating angle, load direction, environment, cycle requirements, and whether the hinge must hold position, index, close softly, or simply pivot smoothly.

Yes. Mansfield provides in-house prototyping and engineering validation before production tooling is cut. Prototype testing can evaluate motion arc, torque profile, cycle life, force requirements, hold-at-angle performance, environmental exposure, and fit within the customer’s assembly. This helps OEM engineers refine the design before committing to full production investment.

Mansfield supports OEM production programs ranging from 5,000 components to 5,000,000+ components per program. The company ships over 250,000 motion control components every week and uses a mix of progressive die stamping, single-stage tooling, fabrication, assembly, and strategic inventory to support both specialty and high-volume production needs.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling requirements, validation needs, assembly steps, and production volume. Mansfield applies value engineering to help meet target unit economics, and tooling, prototyping, engineering support, and production assumptions are typically addressed during the RFQ and development process.

Yes. Mansfield supports production transition, tooling transfer, resourcing, and reshoring scenarios for hinge and motion control components. The team can qualify transferred tooling, validate first articles, maintain form-fit-function compatibility, and often improve the original design for reliability, manufacturability, or cost while protecting continuity of OEM supply.

Start by sharing your assembly drawings, extrusion profile details, expected loads, motion requirements, material preferences, environmental conditions, target production volume, and commercial goals. Mansfield’s engineering and sourcing teams can review the application, discuss feasibility, identify potential design paths, and prepare an RFQ or development plan for the program.
