Half Surface Geared Continuous Hinges Guide

A half surface hinge is mounted with one leaf attached to the face of a door and the other leaf attached to the frame, jamb, or adjacent structure. This arrangement is useful when the door and frame surfaces do not allow a fully mortised or fully surface-mounted hinge. For OEM products, the mounting geometry, fastener access, load path, and appearance all influence whether a half surface style is appropriate.

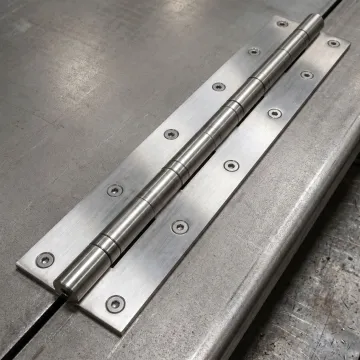

A continuous hinge, often called a piano hinge, runs along most or all of a door or panel edge. Its purpose is to distribute load across a longer span instead of concentrating stress at two or three individual hinges. This can improve alignment, reduce sag, support heavier panels, and create smoother motion in industrial enclosures, appliance doors, access panels, and specialty OEM products.

In hinge terminology, geared typically refers to interlocking geared segments that help distribute motion along the hinge length. This can support smoother operation and reduce localized wear compared with some basic hinge constructions. The right geared continuous hinge specification depends on panel weight, frequency of use, environment, mounting pattern, and whether the application needs corrosion resistance, tight alignment, or concealed hardware.

A custom continuous hinge makes sense when standard catalog hardware cannot meet the application’s geometry, load, cycle-life, material, finish, cost, or tactile requirements. OEM teams often pursue custom engineering when a product has a unique door profile, unusual mounting surface, environmental exposure, target unit cost at scale, or a user experience requirement that off-the-shelf hardware cannot reliably deliver.

Validation can include prototype builds, cycle-life testing, force and torque measurement, environmental testing, corrosion exposure where relevant, and review of fit, feel, form, and function. Mansfield builds and tests prototypes in-house so OEM teams can confirm motion, alignment, durability, and assembly practicality before production tooling is finalized. This helps reduce launch risk and supports more confident program decisions.

Material selection depends on strength, environment, weight, finish, and cost targets. Mansfield’s capabilities include cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys for demanding conditions. Stainless steel may be important for medical casegoods, food-contact appliance applications, or corrosive environments, while aluminum may support weight-sensitive transportation or equipment programs.

Yes. Mansfield supports programs ranging from 5,000-unit specialty runs to 5,000,000+ components, using flexible tooling and assembly approaches for lower-volume needs and progressive die stamping for high-volume production. The company ships more than 250,000 motion control components weekly and maintains strategic inventory levels to support on-time delivery against OEM release schedules.

Start by sharing the application, door or panel geometry, approximate weight, motion requirements, mounting constraints, environmental conditions, expected annual volume, and any target cost or material requirements. Mansfield’s engineering team can review whether a continuous, half surface, concealed, pivot, friction, detent, or other custom hinge approach is most appropriate, then support prototyping, testing, tooling, and production planning.
