Detent Hinges Design Guide and Overview

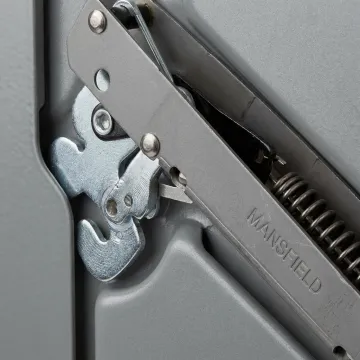

A detent hinge uses a mechanical indexing feature to create defined stopping points along the hinge’s rotation. As the hinge moves, internal geometry or spring-loaded features engage at predetermined angles, creating a tactile “click” or hold position. This lets a door, lid, panel, or cover stay open or partially open at specific positions instead of swinging freely.

A detent hinge is best when the product needs repeatable, predetermined positions, such as a lid that must stop at specific open angles. A friction hinge is better when the panel should hold almost anywhere along the motion arc. Mansfield helps evaluate motion requirements, user feel, panel weight, geometry, and cost targets before recommending the right hinge type.

Detent hinges are used where controlled indexed positioning improves usability, access, or safety. Common OEM applications include appliance doors, equipment access panels, medical casegoods, industrial enclosures, specialty vehicle storage compartments, and consumer-facing products requiring a repeatable open position. The right design depends on the panel weight, usage frequency, available space, and required detent force.

Yes. Mansfield Engineered Components specializes in custom hinge and motion control engineering rather than standard catalog hardware. The team designs detent hinges around the OEM’s geometry, hold angles, material requirements, environmental conditions, cycle-life expectations, production volume, and target unit cost. Prototypes can be built and tested in-house before production tooling is finalized.

Useful starting information includes panel dimensions, weight, center of gravity, motion arc, desired detent angles, mounting envelope, material or finish requirements, environmental exposure, annual volume, and target cost. If the design is early-stage, Mansfield can still help define the hinge requirements and evaluate whether detent, friction, counterbalance, or another motion solution fits best.

Testing can include force and torque measurement across the motion arc, cycle-life testing, hold-at-angle verification, environmental exposure, corrosion or humidity checks where relevant, and assessment of tactile feel. Mansfield’s in-house prototyping and validation process helps confirm that the hinge performs as specified before tooling qualification and full production release.

Mansfield supports OEM production volumes ranging from 5,000 to 5,000,000+ components per program. High-volume programs can use progressive die stamping and strategic inventory planning, while lower-volume specialty programs can use flexible tooling and assembly approaches. Because programs are custom-engineered, pricing and production strategy are matched to the application.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling needs, testing requirements, assembly steps, and production volume. Mansfield also considers target unit economics during engineering so the design can meet performance requirements without unnecessary cost. Tooling, prototyping, and validation support are typically addressed during the development and RFQ process.
