Understanding Industrial Counterbalance Systems and Their Importance

An industrial counterbalance system is a mechanical assembly that offsets the weight of a lid, door, access panel, or cover so it can be opened, held, and closed with controlled effort. These systems may use springs, hydraulic elements, constant-force mechanisms, or custom torque profiles. The goal is to improve safety, ergonomics, usability, and predictable motion in OEM equipment.

Industrial counterbalance systems reduce the force required to lift heavy panels and help prevent uncontrolled closing or slamming. For OEM products, that improves operator safety, product feel, and perceived quality. A properly engineered counterbalance also helps components stay open at intended angles, reduces strain on hinges and surrounding structures, and supports consistent performance throughout the product’s service life.

Mansfield begins by evaluating the application’s weight, geometry, center of gravity, motion arc, target feel, cycle-life requirements, and unit cost goals. Engineers then develop a mechanism and torque curve suited to the product. Prototypes are built and tested in-house, including force and torque measurement, hold-at-angle evaluation, environmental exposure when needed, and design verification before tooling.

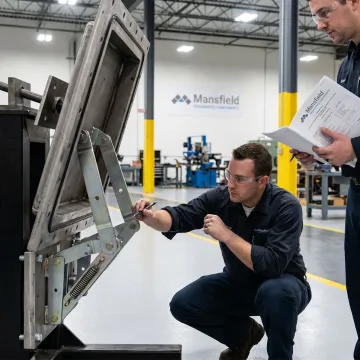

Counterbalance systems are used anywhere a heavy part must move safely and smoothly against gravity. Common applications include industrial access covers, equipment lids, enclosure doors, oven doors, washing machine lids, automotive hoods, deck lids, tonneau covers, medical cabinet doors, and specialty machinery panels. Mansfield focuses on OEM applications where motion control must be engineered to the product.

Mansfield engineers spring counterbalances, hydraulic counterbalances, constant-force counterbalances, gas-spring alternative mechanisms, lift assists, lid stays, and custom torque-curve counterbalances. The best choice depends on panel weight, available package space, opening angle, desired feel, environmental conditions, cycle expectations, and cost targets. Custom engineering is often used when catalog parts cannot meet the exact motion or geometry requirements.

Yes. Mansfield builds and tests prototype components in-house before production tooling is released. Validation can include torque and force measurement across the motion arc, cycle-life testing, environmental testing for temperature, humidity, or corrosion exposure, and hold-at-angle performance checks. This helps OEM engineers confirm the design’s function, feel, durability, and manufacturability before committing to full-scale production.

Mansfield supports OEM programs ranging from approximately 5,000-unit specialty runs to 5,000,000+ components per program. The company ships more than 250,000 motion control components every week and uses progressive die stamping, single-stage tooling, flexible assembly, strategic inventory, and release-based shipping to support both high-volume production and lower-volume specialty programs without standard catalog constraints.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling requirements, testing needs, production volume, and target unit economics. Mansfield applies value engineering to help the component meet functional requirements while fitting the OEM’s budget. Tooling, prototyping, and engineering support can be included as part of program development during the RFQ and design consultation process.
