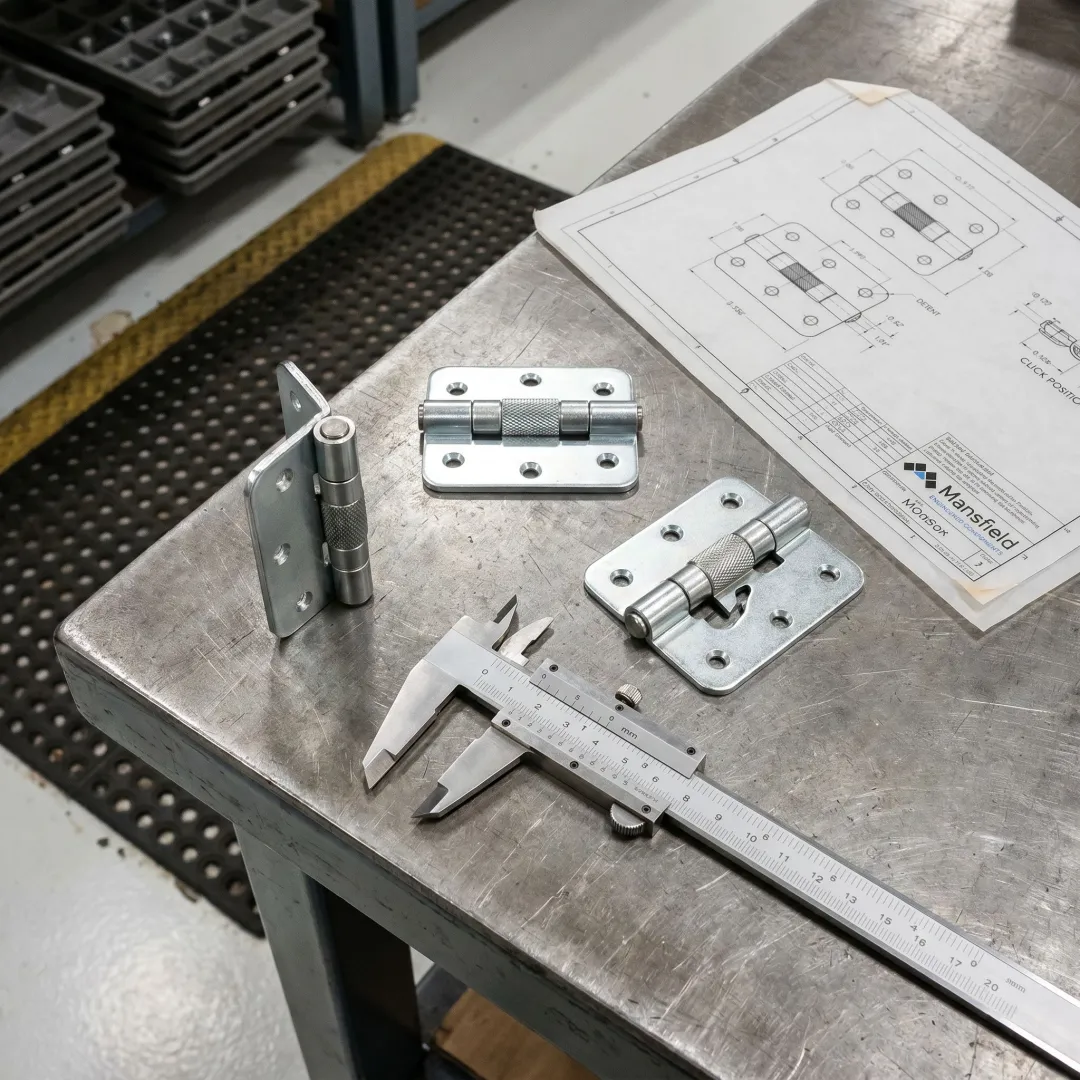

Detent Torque Hinges: Types and Applications

A detent torque hinge is a position-control hinge designed to hold a door, lid, cover, or panel at defined angles. The detent feature creates indexed stopping points, while the torque element controls resistance through the motion arc. OEMs use these hinges when a product needs repeatable positions, intentional tactile feedback, and reliable hold performance.

Detent hinges hold at predetermined positions, such as open, closed, or intermediate indexed angles. Friction hinges typically hold anywhere along the arc by applying consistent resistance. A detent hinge is better for repeatable stops and user feedback, while a friction hinge is better for continuous adjustability. Some applications may require a custom hybrid design.

Detent torque hinges are used in appliance doors, medical casegoods, industrial access panels, equipment covers, vehicle storage compartments, RV cabinets, marine enclosures, and specialty machinery. They are especially useful when users need a panel to stay open at defined positions without secondary supports, latches, or separate lid stays.

Yes. Mansfield Engineered Components does not rely on a standard catalog approach. The team engineers each hinge around the OEM’s geometry, torque curve, detent positions, material requirements, environmental exposure, production volume, and target unit cost. Prototypes are built and tested in-house before tooling and production release.

Hinge torque is determined by evaluating the panel weight, center of gravity, pivot location, motion arc, required hold positions, expected user force, and safety requirements. Mansfield measures and validates the torque profile through prototype testing, including force and torque measurement across the motion arc and hold-at-angle performance checks.

Custom engineering is appropriate when catalog hinges cannot meet torque, detent, geometry, material, cycle-life, tactile feel, or unit-cost requirements. Mansfield is especially relevant for programs with unusual packaging constraints, high-volume cost targets, demanding environmental requirements, or differentiated motion feel. Custom tooling often becomes more economical at scaled OEM volumes.

Mansfield validates prototypes with torque measurement, cycle-life testing, hold-at-angle testing, environmental exposure when required, corrosion considerations, temperature and humidity checks, and fit verification against the OEM assembly. The goal is to confirm performance before tooling is finalized, reducing launch risk and avoiding costly changes during production.

Mansfield supports specialty programs starting around 5,000 components and high-volume programs exceeding 5,000,000 components. The company ships over 250,000 motion control components every week and uses progressive die stamping, flexible assembly, strategic inventory, and release-based scheduling to support OEM production requirements.
