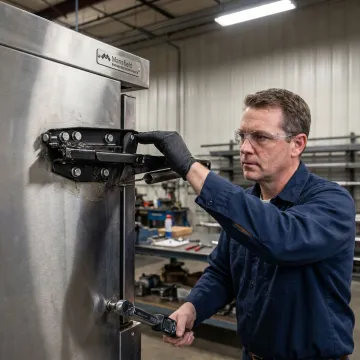

Hinge Design Requirements for Commercial Oven Doors

Commercial oven door hinges must support the door’s weight, opening angle, motion arc, and handle placement while withstanding heat, repeated cycling, and cleaning conditions. The design also needs to control operator effort, prevent uncontrolled drop-down movement, fit within the appliance envelope, meet target unit costs, and deliver the tactile feel expected by the OEM’s end users.

A counterbalance offsets the weight of a drop-down oven door so the user does not experience the full load during opening and closing. The torque curve must match the door geometry across the motion arc. When properly engineered, the door feels controlled, safer, and easier to operate while reducing slam risk and stress on surrounding appliance structures.

Material selection depends on heat exposure, corrosion risk, required strength, spring performance, and appliance environment. Mansfield works with materials such as cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys. Commercial kitchen equipment may require corrosion-resistant or food-equipment-appropriate finishes, especially when hinges are exposed to cleaning chemicals, moisture, or elevated temperatures.

The torque curve is determined by analyzing door weight, center of gravity, hinge location, opening angle, handle position, and the desired user effort at each point in the motion arc. Engineers then model spring, counterbalance, damping, or hinge geometry options and validate the selected curve with physical prototypes and force or torque measurements.

Catalog hinges may work when the oven design can be adapted to available hardware and performance needs are simple. Custom hinges are better suited when the door has a specific torque curve, tight packaging constraints, high-temperature requirements, premium motion feel, unique mounting geometry, or production volumes where custom tooling can improve unit economics.

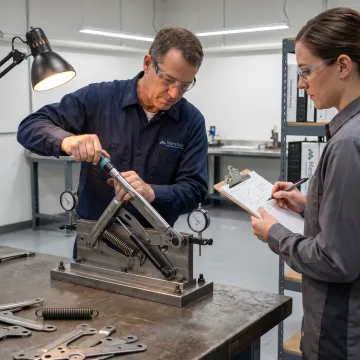

Testing should confirm torque output, force profile, cycle life, hold-open behavior, closing control, dimensional fit, and environmental durability. Depending on the application, validation may include temperature, humidity, corrosion exposure, and repeated-use testing. Mansfield builds and tests prototypes in-house before tooling release to reduce program risk and confirm the design meets OEM specifications.

Mansfield provides single-source responsibility from concept review through engineering, prototyping, tooling, metal stamping, spring manufacturing, assembly, inspection, packaging, and release-based delivery. This approach helps OEM teams avoid coordinating separate design, tooling, stamping, and assembly suppliers while maintaining accountability for performance, manufacturability, cost targets, and delivery schedules.

Mansfield supports OEM programs ranging from 5,000-unit specialty runs to 5,000,000+ component programs. The company ships more than 250,000 motion control components every week and uses progressive die stamping, single-stage tooling, flexible assembly, strategic inventory, and release-based scheduling to support both high-volume appliance platforms and specialized commercial equipment programs.
