Counterbalance Hinge Solutions for Heavy Loads

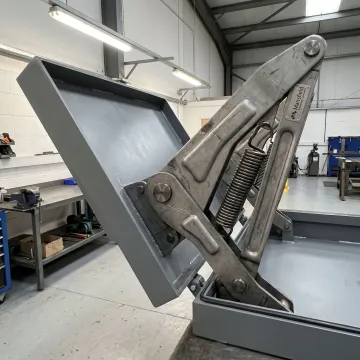

A counterbalance hinge offsets the weight of a lid, panel, door, or cover so it opens with less effort and can stay in position when released. For heavy loads, the hinge or lift-assist mechanism must be engineered around weight, geometry, center of gravity, motion arc, torque curve, safety expectations, and production cost.

A custom counterbalance is often preferred when space is limited, the product needs a specific torque feel, the mechanism must integrate cleanly into the hinge area, or gas-spring performance is not ideal for the environment. Mansfield can engineer spring, hydraulic, constant-force, or gas-spring alternative mechanisms to match the application’s motion requirements.

The team evaluates the moving component’s weight, dimensions, hinge axis, center of gravity, opening angle, user-force target, hold-open needs, and desired closing behavior. From there, Mansfield develops a torque profile that balances the load through the motion arc and validates it with prototype testing before tooling and production launch.

Yes. Mansfield builds and tests prototypes in-house to validate torque, force, motion arc, cycle life, environmental exposure, corrosion resistance, and hold-at-angle performance. This allows OEM engineering teams to iterate quickly and confirm that the mechanism meets functional, tactile, durability, and cost requirements before committing to production tooling.

Common applications include oven doors, washing machine lids, dishwasher mechanisms, automotive hoods, deck lids, tonneau covers, industrial access covers, equipment lids, medical casegoods doors, and heavy cabinet panels. Mansfield focuses on components that control movement counter to gravity, especially where safe operation and a better user experience matter.

Mansfield supports OEM programs from approximately 5,000-unit specialty runs to 5,000,000+ component production programs. The company ships more than 250,000 motion control components every week and uses progressive die stamping, flexible assembly, strategic inventory, and release-based delivery to support both lower-volume and high-volume production needs.

Pricing is custom-quoted per program based on design complexity, materials, tolerances, production volume, tooling requirements, prototyping, testing, and assembly needs. Mansfield value-engineers each program to meet the OEM’s target unit economics while preserving the required motion performance, durability, quality, and delivery expectations.

Yes. Mansfield provides single-source responsibility from concept, engineering, prototyping, and testing through tooling, metal stamping, fabrication, assembly, inspection, packaging, and delivery. This reduces coordination across multiple suppliers and gives OEM teams one accountable partner for the entire counterbalance hinge program.
