Expert Angle Hinge Brackets & Fittings Guide

The hinge angle is the degree of rotation a door, lid, cover, or panel travels around its hinge axis, usually measured from the closed position to the open position. In engineered hinge applications, the angle affects bracket geometry, mounting hole placement, clearance, load transfer, torque requirements, and whether the component needs detents, friction, counterbalance, or controlled closure.

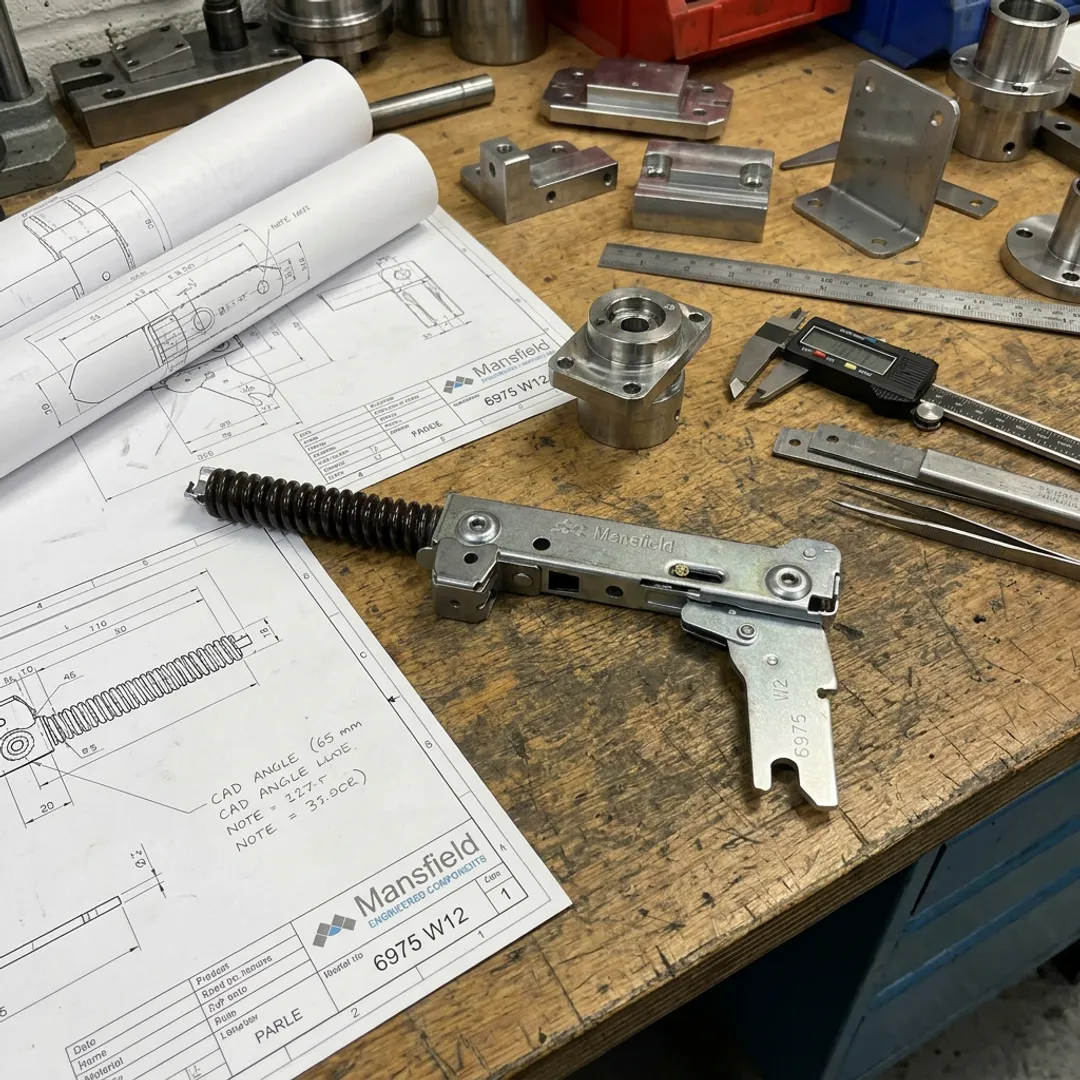

Angle hinge brackets are used to mount and support a hinge where the moving panel must rotate, hold, lift, or clear surrounding geometry in a specific way. They are common in appliance doors, industrial access covers, vehicle panels, medical casegoods, cabinetry, and equipment enclosures. The bracket geometry helps align the hinge axis and distribute operating loads.

Start with the panel weight, desired opening angle, available mounting space, required motion path, cycle-life target, material environment, and user feel. A simple pivot may work for basic rotation, while four-bar, friction, detent, counterbalance, or soft-close mechanisms may be better when clearance, hold position, or controlled motion matters.

Custom hinge engineering is typically the better choice when catalog hardware cannot meet the required torque curve, geometry, appearance, material, durability, or unit-cost target at scale. Mansfield notes that custom tooling can become more cost-effective than catalog components at higher annual volumes, often when programs reach the 10,000 to 100,000 unit range.

Common materials include cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys. The best choice depends on strength, corrosion resistance, weight, temperature exposure, cleaning requirements, and cost. Mansfield supports stainless steel for medical and food-contact applications, aluminum for weight-sensitive programs, and spring steel for counterbalance components.

Yes. Mansfield builds and tests prototype components in-house before production tooling is released. Prototype validation can include torque measurement across the motion arc, force testing, hold-at-angle testing, cycle-life review, environmental exposure when required, and design verification against OEM specifications. This reduces launch risk and supports faster engineering iteration.

Mansfield supports OEM programs from 5,000-unit specialty runs to 5,000,000+ components per program. Its manufacturing model combines progressive die stamping for high-volume production with single-stage tooling and flexible assembly for lower-volume specialty needs. The company ships more than 250,000 motion control components every week.

Programs are quoted based on design complexity, materials, tolerances, tooling requirements, testing needs, production volume, and assembly requirements. Mansfield also considers value engineering opportunities to meet target unit economics. Tooling, prototyping, engineering support, strategic inventory, and production release schedules can be included as part of the overall program plan.
