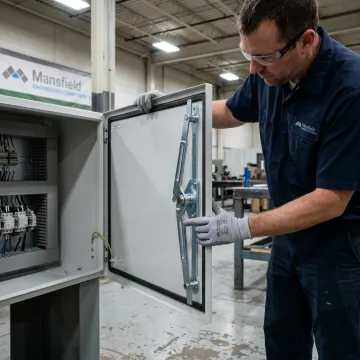

Hinged Electrical Boxes for Indoor and Outdoor Use

An electrical enclosure protects wiring, controls, terminals, and other electrical components from contact, contamination, impact, and environmental exposure. In OEM equipment, the enclosure also supports safe maintenance access, organized component mounting, thermal management, and compliance goals. A hinged design improves serviceability by allowing technicians to open the box repeatedly without removing a separate cover.

Common enclosure types include junction boxes, control cabinets, disconnect enclosures, operator interface boxes, wall-mounted panels, floor-standing cabinets, and outdoor utility or telecom enclosures. They may be classified by material, mounting style, access method, and environmental rating. Hinged electrical boxes are especially useful when equipment requires frequent inspection, adjustment, or maintenance access.

Outdoor electrical boxes typically need corrosion-resistant materials or finishes, durable hinge hardware, controlled door alignment, and protection against moisture, dust, temperature swings, and UV exposure. Depending on the application, the design may also require gasket compression, stainless or coated components, tamper-resistant access, and reliable operation after repeated service cycles in the field.

Yes. Mansfield can support existing enclosure programs by reviewing current drawings, hinge geometry, mounting points, material requirements, and performance issues. The team can develop a form-fit-function replacement, improve the original hinge for durability or assembly efficiency, or help transition production from a discontinued supplier while maintaining compatibility with the existing box design.

Material selection depends on strength, corrosion exposure, weight, cost, and finish requirements. Mansfield’s manufacturing capabilities include cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys for demanding environments. Indoor boxes may prioritize cost-effective durability, while outdoor enclosures often require stainless, weatherized finishes, or materials selected for moisture and corrosion resistance.

Pricing is quoted per program based on design complexity, material selection, tolerances, tooling needs, validation requirements, assembly content, and production volume. Mansfield value-engineers components to meet OEM target unit economics rather than applying a standard catalog price. Tooling, prototyping, and engineering support can be included as part of the program development quote.

Mansfield supports production volumes from approximately 5,000-unit specialty programs to 5,000,000+ components per program. The company combines single-stage tooling and flexible assembly for lower-volume work with progressive die stamping and high-throughput production for larger programs. Over 250,000 motion control components are shipped every week across OEM applications.

Start by sharing enclosure drawings, expected annual volume, door weight, hinge location, motion requirements, indoor or outdoor exposure, material preferences, and any current performance issues. Mansfield’s engineering and sales teams can review the application, discuss design options, identify prototyping or testing needs, and prepare a custom quote aligned to your program goals.
