Aluminum Continuous Hinges - Various Options and Sizes

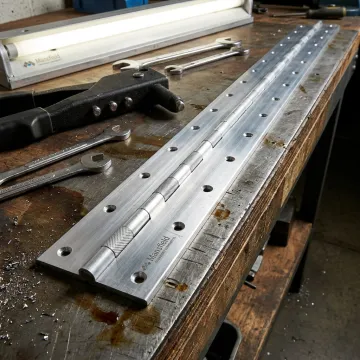

A continuous hinge, often called a piano hinge, runs along the full or extended length of a door, lid, panel, or cover. Instead of concentrating support at two or three hinge points, it distributes load across a longer edge. This makes it useful for OEM applications requiring alignment, durability, smooth rotation, and consistent support over repeated cycles.

The weight capacity of a continuous hinge depends on several engineering factors: hinge length, leaf width, material thickness, pin diameter, mounting method, fastener pattern, door geometry, and how the load is applied. Mansfield evaluates the full application rather than relying on a generic rating, then designs and validates the hinge for the OEM’s specific panel weight, motion arc, and durability requirements.

Aluminum continuous hinges are often selected when weight reduction, corrosion resistance, clean appearance, or easier handling matter to the finished product. They can be well suited for transportation, specialty enclosures, industrial access panels, and certain appliance or casegoods applications. Mansfield can help evaluate whether aluminum, stainless steel, cold-rolled steel, or another material best fits the performance, environment, and cost target.

Yes. Mansfield does not rely on a standard catalog approach for OEM hinge programs. Continuous hinge length, leaf geometry, material thickness, hole spacing, mounting pattern, pin configuration, finish, and assembly details can be engineered around the customer’s product. This is especially valuable when the hinge must fit a tight envelope, match existing mounting points, or meet specific production economics.

A catalog hinge can work when the product can be designed around existing hardware. A custom hinge becomes more attractive when the application has unusual geometry, specific material or finish requirements, high-volume cost targets, distinctive fit and feel needs, or performance requirements that catalog components cannot meet. Mansfield’s custom approach is designed for OEM programs where the hinge must fit the product, not the reverse.

Yes. Mansfield builds and tests prototypes in-house before production tooling is released. Prototype validation can include fit checks, motion evaluation, force or torque measurement where relevant, cycle-life testing, environmental considerations, and review of the final user experience. This helps OEM engineering teams reduce risk, refine the design, and confirm performance before committing to production-scale manufacturing.

Mansfield supports a broad production range, from 5,000-unit specialty programs to 5,000,000+ component programs. The company ships more than 250,000 motion control components every week and uses a mix of progressive die stamping, single-stage tooling, flexible assembly, inspection, and strategic inventory planning. Pricing is quoted per program based on design complexity, materials, tolerances, tooling, and expected volume.

OEM teams can start by sharing drawings, application details, expected annual volume, material preferences, performance requirements, environmental conditions, and target unit economics. Mansfield can review the program, recommend design or manufacturing options, and quote engineering, prototyping, tooling, and production support. For RFQs or design consultation, buyers can contact Mansfield Engineered Components by phone at 419.524.1300.
