Custom Lift Off Hinges - Aluminum and More Options

Lift off hinges allow a door, lid, cover, or panel to be removed from its mating assembly without unscrewing the hinge. OEMs use them when equipment requires frequent access, simplified service, removable doors, or easier assembly. Mansfield engineers lift off hinge geometry around the product’s load, alignment, motion path, material, and manufacturing requirements.

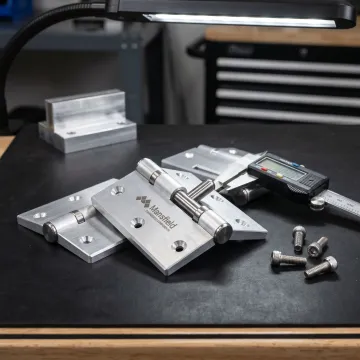

Yes. Aluminum is a strong option when the application requires lower weight, corrosion resistance, or a lighter assembly than steel can provide. Mansfield can evaluate aluminum grades, thickness, forming methods, finishes, and fastening requirements to determine whether aluminum will meet the hinge’s load, cycle-life, tolerance, and cost targets.

Mansfield works with cold-rolled steel, stainless steel, aluminum, spring steel, and specialty alloys depending on the application. Stainless steel is often considered for medical, food-contact, corrosive, or frequent-cleaning environments. Steel may be better for high-load, cost-sensitive, or durability-focused programs. Material choice is matched to function, environment, production method, and unit economics.

Mansfield focuses on custom-engineered OEM components rather than off-the-shelf catalog hardware. That approach is best when a product has a specific geometry, lift-off direction, material requirement, load case, tactile feel, finish, or cost target that catalog hinges cannot satisfy. The team can also help evaluate whether custom tooling makes sense for your projected production volume.

Mansfield supports OEM programs from approximately 5,000 components to 5,000,000+ components per program. High-volume programs can use progressive die stamping and scalable assembly, while lower-volume specialty programs may use more flexible tooling and production methods. Strategic inventory and release-based shipping help align production output with customer schedules.

Yes. Mansfield builds and tests prototypes in-house before production tooling is finalized. Validation can include fit checks, motion evaluation, force or torque measurement where applicable, cycle-life testing, environmental exposure, corrosion considerations, and manufacturability review. This helps OEM engineering teams confirm performance and make design changes before committing to full production.

Quotes are based on design complexity, material selection, tolerances, production volume, tooling requirements, assembly needs, testing requirements, and delivery expectations. Mansfield typically reviews drawings, CAD data, application requirements, and annual volume forecasts before recommending a manufacturing approach. Tooling, prototyping, engineering support, and production pricing can be addressed as part of program development.

Mansfield serves appliance, commercial appliance, automotive aftermarket, transportation, medical casegoods, general industrial, cabinetry, RV, marine, outdoor equipment, and specialty OEM markets. Lift off hinge requirements vary widely by industry, so the engineering team considers environmental exposure, cleaning chemicals, access frequency, user feel, load, safety, finish, and production economics for each application.
