Optimized Gooseneck Hinge Design Mechanism

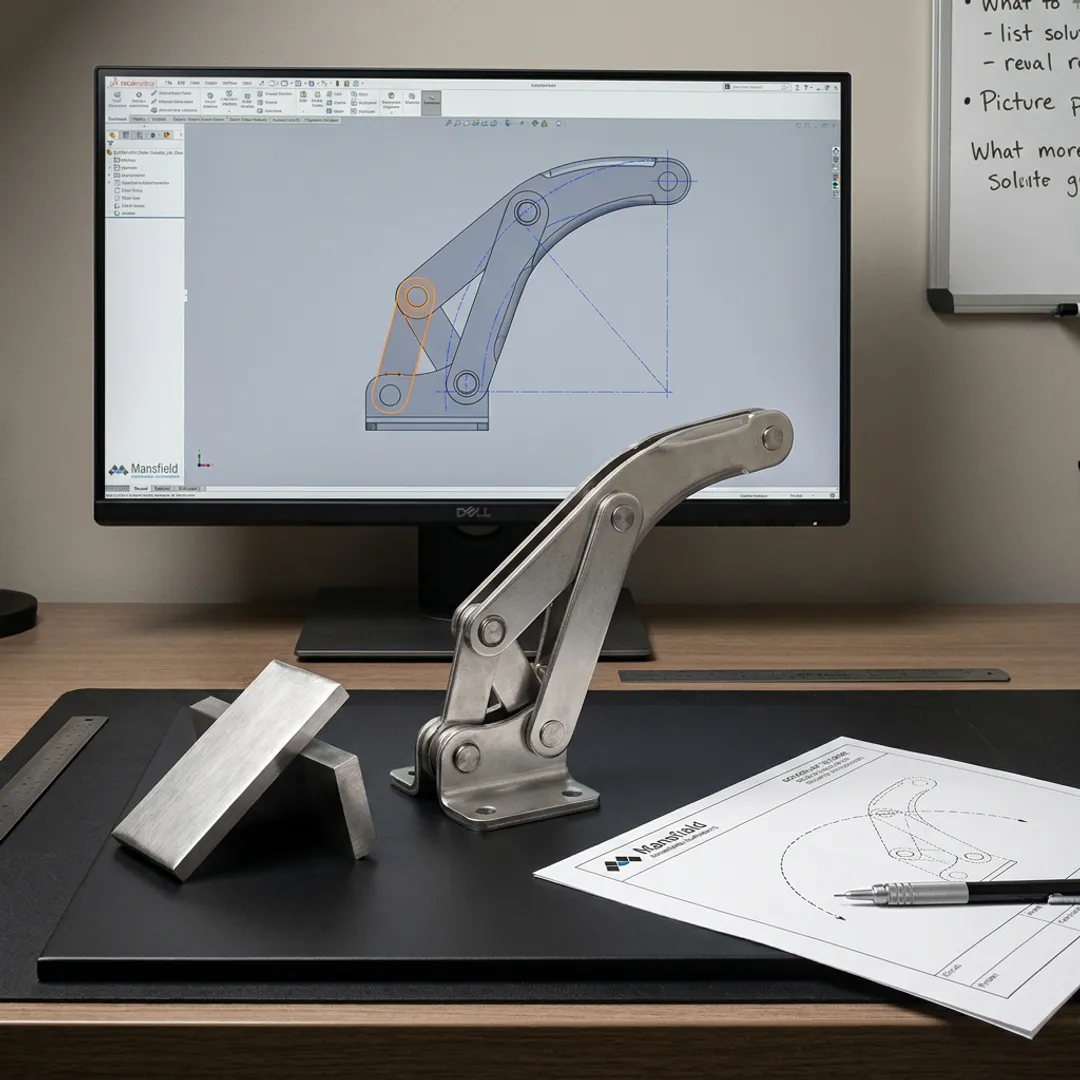

An optimized gooseneck hinge design mechanism is a custom hinge solution engineered to create a specific lift-and-clear motion path. It is typically used when a door, lid, cover, or panel must move around adjacent geometry while maintaining smooth operation, reliable support, controlled torque, and manufacturable cost targets for OEM production.

A custom gooseneck hinge is appropriate when catalog hardware cannot satisfy the required motion arc, packaging space, load rating, tactile feel, material requirements, or target unit economics. Mansfield is especially suited for applications with unusual geometry, specific torque-curve needs, high-cycle expectations, or production volumes where custom tooling can outperform catalog component pricing.

Yes. Mansfield provides single-source responsibility from concept through finished goods. The team supports mechanical design, in-house prototyping, validation testing, tooling, metal stamping, fabrication, assembly, inspection, packaging, and delivery. Production programs can range from 5,000 components to 5,000,000+ components, with over 250,000 motion control components shipped weekly.

Useful inputs include CAD geometry, mounting constraints, panel weight, center of gravity, desired opening angle, clearance requirements, environmental exposure, target cycle life, finish requirements, annual volume, cost target, and any current hinge performance issues. Mansfield’s engineering team can use these details to evaluate feasible motion paths and develop an application-specific mechanism.

Yes. Mansfield builds and tests prototypes in-house before production tooling is released. Validation can include torque and force measurement across the motion arc, cycle-life testing, environmental exposure, corrosion considerations, hold-at-angle behavior, and tactile performance. This process helps OEM teams confirm performance and make design changes before committing to full production.

Custom gooseneck hinge mechanisms can support appliance, automotive aftermarket, medical casegoods, industrial equipment, commercial cabinetry, RV, marine, and specialty enclosure applications. They are often valuable wherever a panel must move around surrounding structure, hold position, prevent interference, or provide a premium opening and closing experience.

Pricing is quoted per program based on design complexity, materials, tolerances, tooling requirements, prototype work, validation needs, annual volume, and production process. Mansfield value-engineers each program to meet OEM unit-cost targets while preserving fit, feel, form, function, reliability, and manufacturability.

Yes. Mansfield can take over hinge and motion control production from discontinued suppliers, closed divisions, unreliable offshore sources, or programs being reshored. Transition support may include tooling transfer, assembly line relocation, first-article inspection, production validation, and value engineering while maintaining form, fit, and function compatibility.
